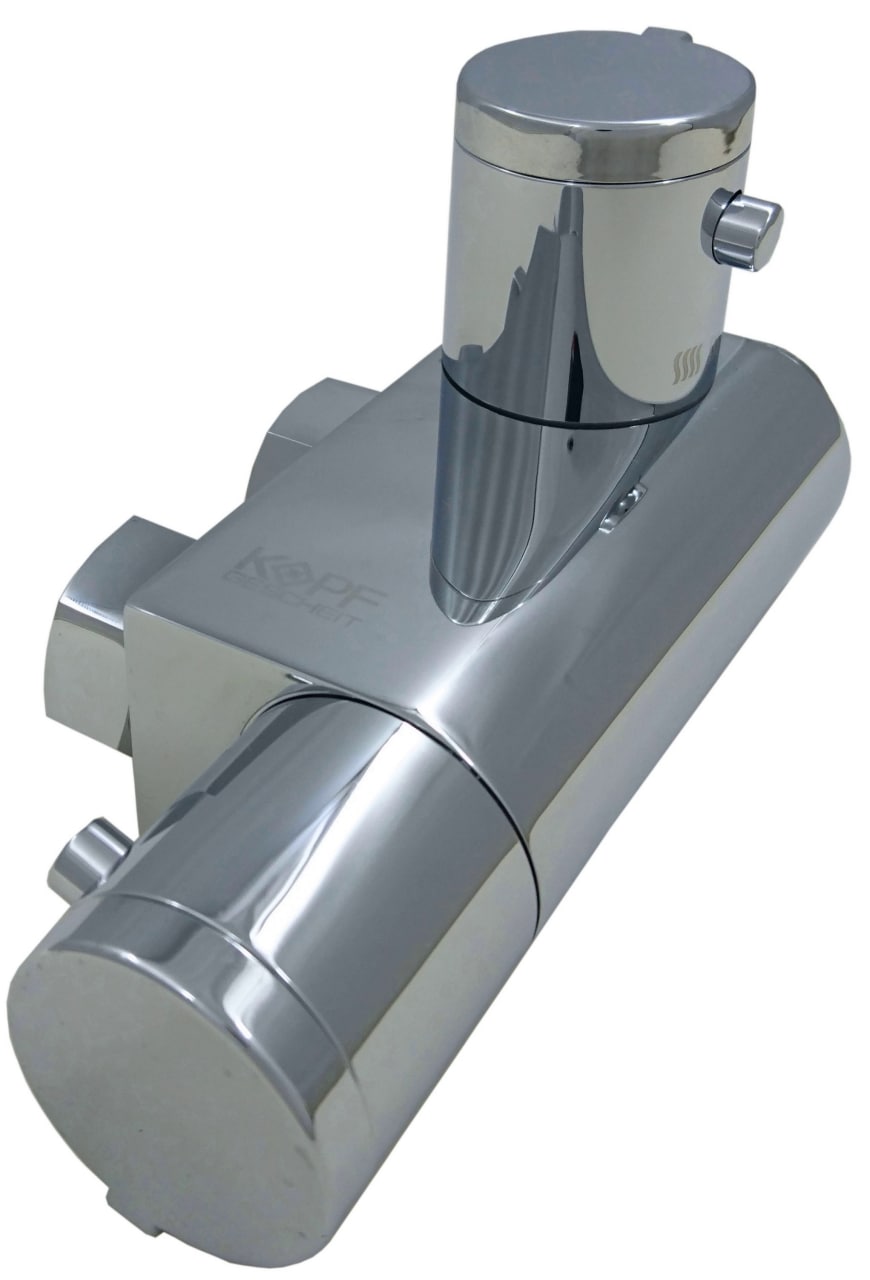

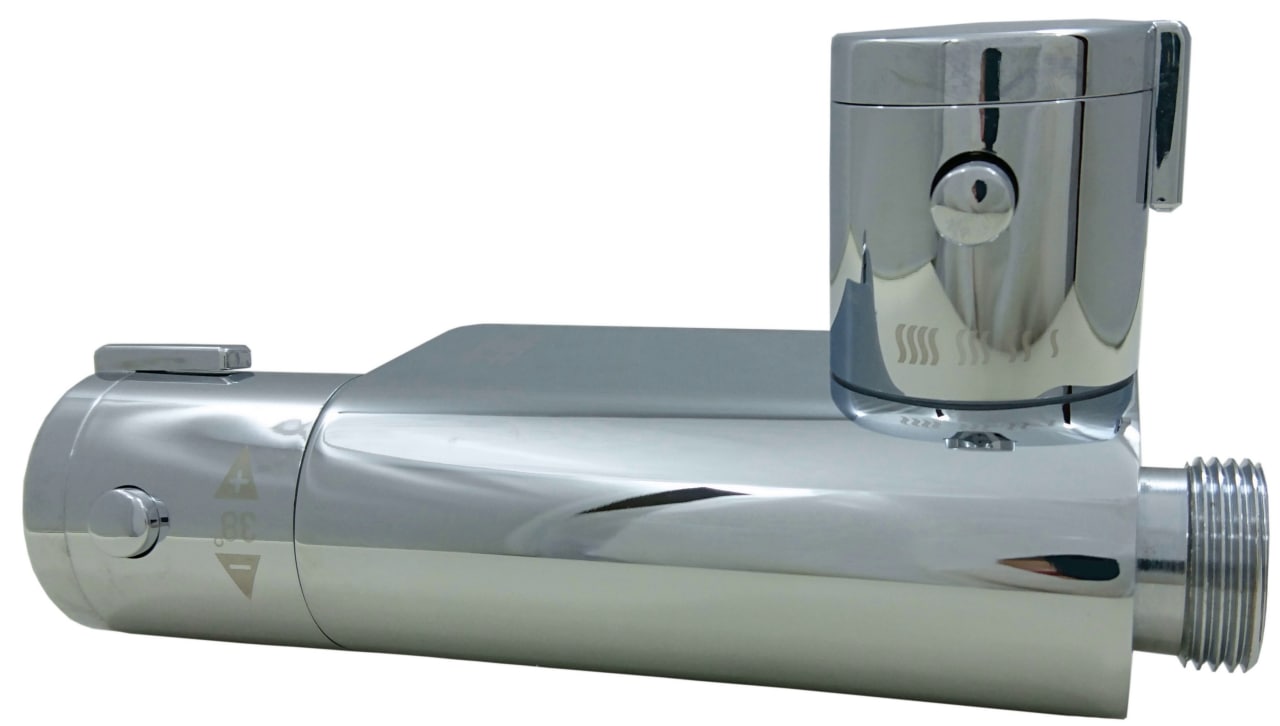

KG532 34D Thermostatic Shower Mixer
The Kopfgescheit KG532 34D mixes hot and cold water and automatically maintains the selected outlet temperature. Designed for exposed installation with separate flow and temperature controls.
- 3/4-inch pipe connections
- Temperature adjustment from 20 to 50°C
- 38°C safety stop on the temperature handle
- Brass body and cartridge
- Inlet filters and non-return valves
Controlled water temperature
The KG532 34D thermostatic mixer prepares water at the temperature selected on its control handle. It adjusts the hot and cold water mixture as supply conditions change, making it suitable for showers in homes, hotels and leisure facilities.
Installation and connections
Designed for exposed installation with separate flow and temperature controls. The unit has 3/4-inch connections. It can serve up to five outlets where the available flow and system design allow.
Temperature setting and protection
The adjustment range is 20–50°C. A stop at 38°C helps prevent an accidentally high setting; the release button allows adjustment beyond this point. Inlet filters and non-return valves are fitted on the hot and cold water connections.
Construction and maintenance
The body and thermostatic cartridge are made from brass. A ceramic valve provides flow control and shut-off. Follow the installation instructions and keep the inlet filters clean to maintain correct operation.
- Body material: chrome-plated brass
- Cartridge material: brass, stainless steel
- Valve material: ceramic
- Working pressure: 0,05 - 0,7 MPa
- Pressure difference between cold and hot water: max. 0.1 MPa
- Working pressure difference in pipe diameter: G3/4"
- Inlet temperature range: cold water: 5-29℃, hot water: 50-80℃
- Outlet water temperature range: 20-50℃
- Temperature limitation by fuse: 38℃
- Adjustable temperature range - 1 to 45 ℃
- Nominal flow capacity: 2.580 m³/h

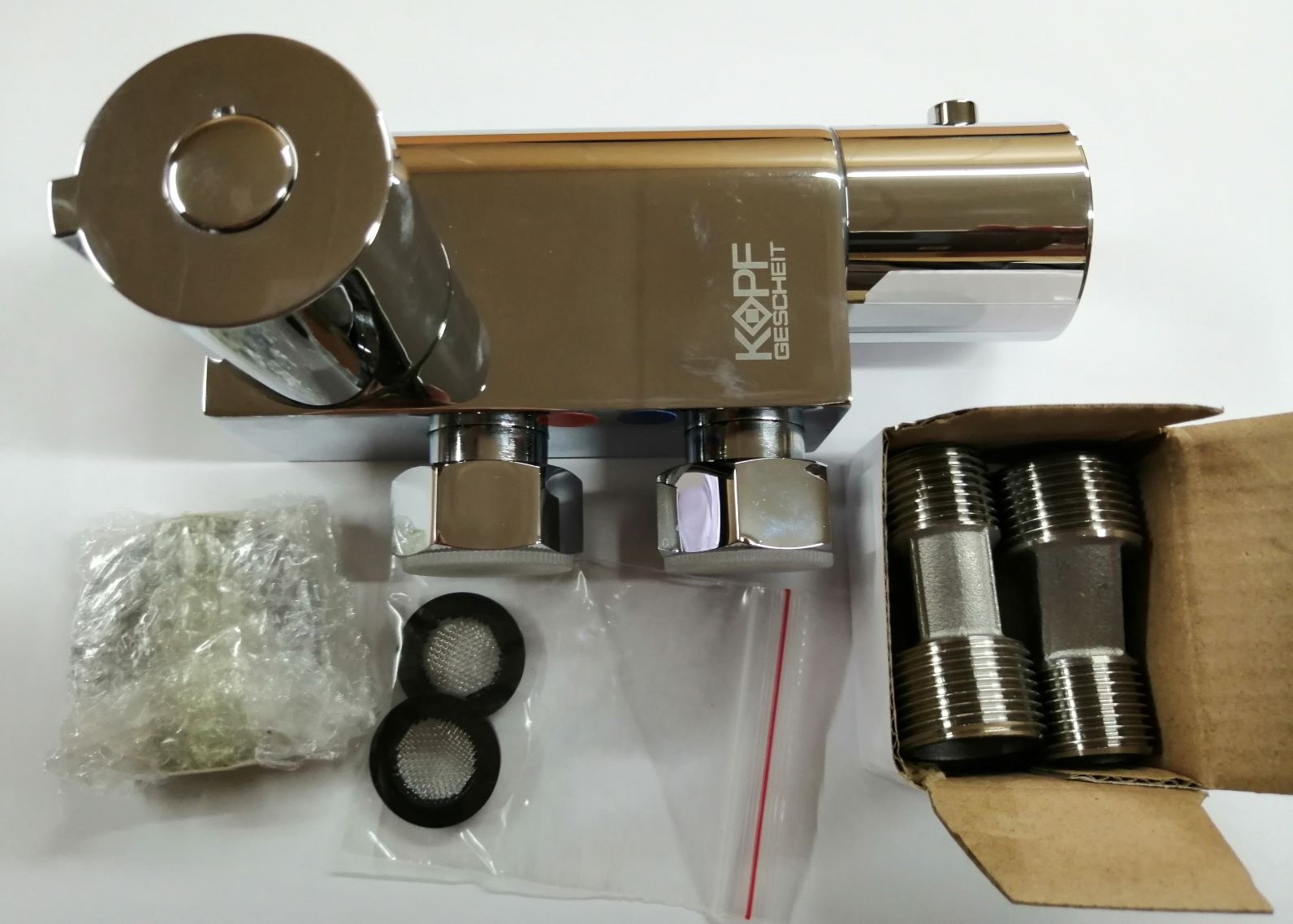

- Thermostatic faucet - 1 pc.
- Pre-filters - 2 pcs.
- Product data sheet - 1 pc.
