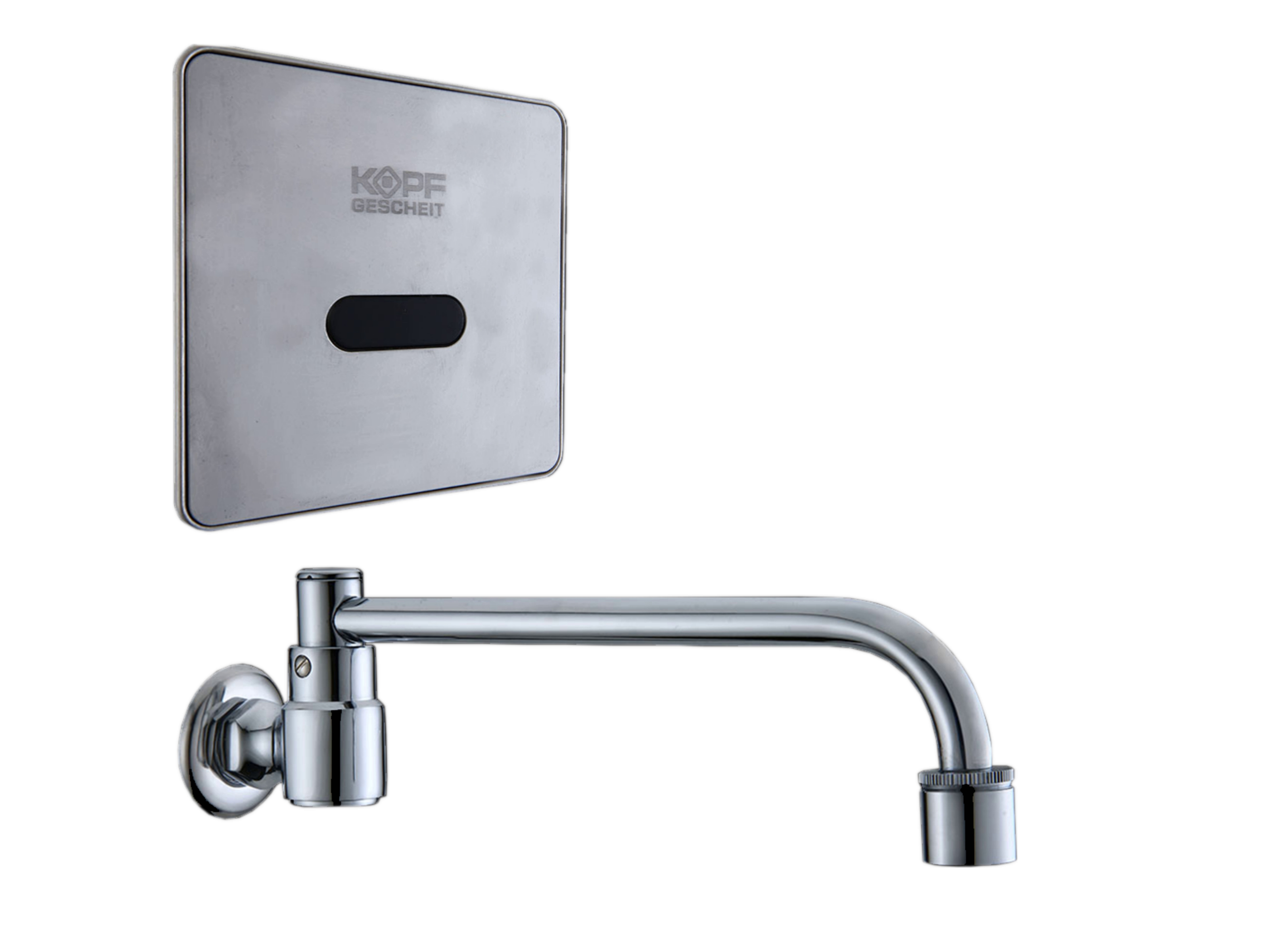

KG5444DC Concealed Wall Sensor Faucet
The Kopfgescheit KG5444DC provides touchless water delivery at the basin. A concealed sensor control with a SUS304 stainless steel faceplate for use with the KG5444 Spout.
- For a single cold or premixed water supply
- Automatic infrared sensor control
- Concealed wall installation
- Automatic shut-off after 60 seconds of continuous operation
Concealed Wall Sensor Faucet
A concealed sensor control with a SUS304 stainless steel faceplate for use with the KG5444 Spout. The Kopfgescheit KG5444DC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.
Water supply and installation
This single-inlet model has no temperature lever. Supply premixed water from a separate thermostatic mixing valve where warm water is required. The unit uses G1/2 connections and is designed to supply the matching KG5444 Spout. The brass solenoid valve includes a serviceable fine filter and water-flow adjustment.
Sensor control and power
The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.
Power is supplied by four AA batteries at DC 6 V. External power requires the optional compatible KG-PSU2 power unit.
Care and use
Protect the sensor window from aggressive cleaning agents. A separate thermostatic mixing valve must be selected and installed to suit the water supply.
- Shutting off the water supply when the spout is turned 90 degrees
- Infrared sensor
- Advanced energy-saving technology to extend battery life
- Watertight, vandal resistant sensor aperture
- Low battery indicator in the sensor aperture
- Automatic sensor sensitivity adjustment: integrated microchip for control
- Advanced water flow technology
- Standard AA batteries, can be purchased in any shop. Use of standard AA batteries possible
- Automatic switch-off after more than 60 seconds of use
- Leak and drip protection
- Built-in mechanical water filter with easy access for maintenance
- Decorative plate - 1 pc.
- Mounting plate with sensor assembly - 1 pc.
- Valve unit and power supply unit assembly - 1 pc.
- Mounting U-bars - 1 pc.
- Screw for fixing the mounting plate - 4 pcs.
- Screw complete with dowel for fixing the valve block and sensor unit - 4 pcs.
- Suction cup for removing the decor plate - 1 pc.
- Product data sheet with warranty card - 1 pc.
