KG5152V-DC Touchless Basin Faucet

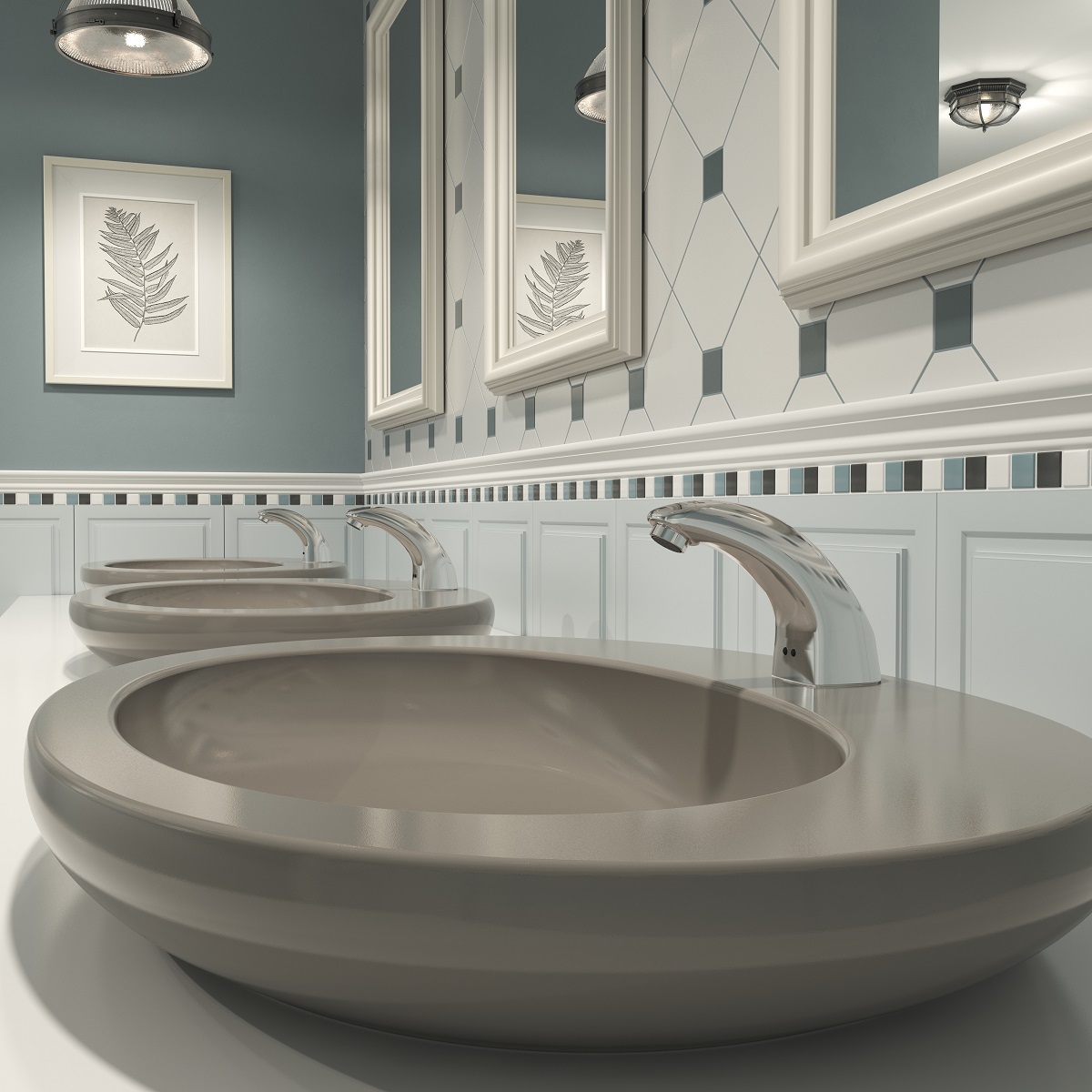

The Kopfgescheit KG5152V-DC provides touchless water delivery at the basin. A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms.
- For a single cold or premixed water supply
- Automatic infrared sensor control
- Maximum flow rate of 6 l/min
- Automatic shut-off after 60 seconds of continuous operation
Touchless Basin Faucet
A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms. The Kopfgescheit KG5152V-DC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.
Water supply and installation
This single-inlet model has no temperature lever. Supply premixed water from a separate thermostatic mixing valve where warm water is required. A built-in flow limiter restricts delivery to a maximum of 6 litres per minute. A brass solenoid valve with a 100 µm filter and flow adjustment simplifies maintenance.
Sensor control and power
The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.
Power options include four AA batteries or a compatible USB supply. An automatic cycle replenishes the basin trap after more than a day without use.
Care and use
Use non-abrasive cleaning products suitable for the chrome finish. A separate thermostatic mixing valve must be selected and installed to suit the water supply.
-
Purpose - for wash-basin
- Type of faucet - touch sensor
- Surface finish - chrome
- Body material - brass
- Spout shape - traditional
- Swivel spout - no
- Stop valve - Solenoid valve
- Power supply - DC6B (4*AA batteries) (internal) AC 220V or AC/DC 12V (external)
- Aerator - yes

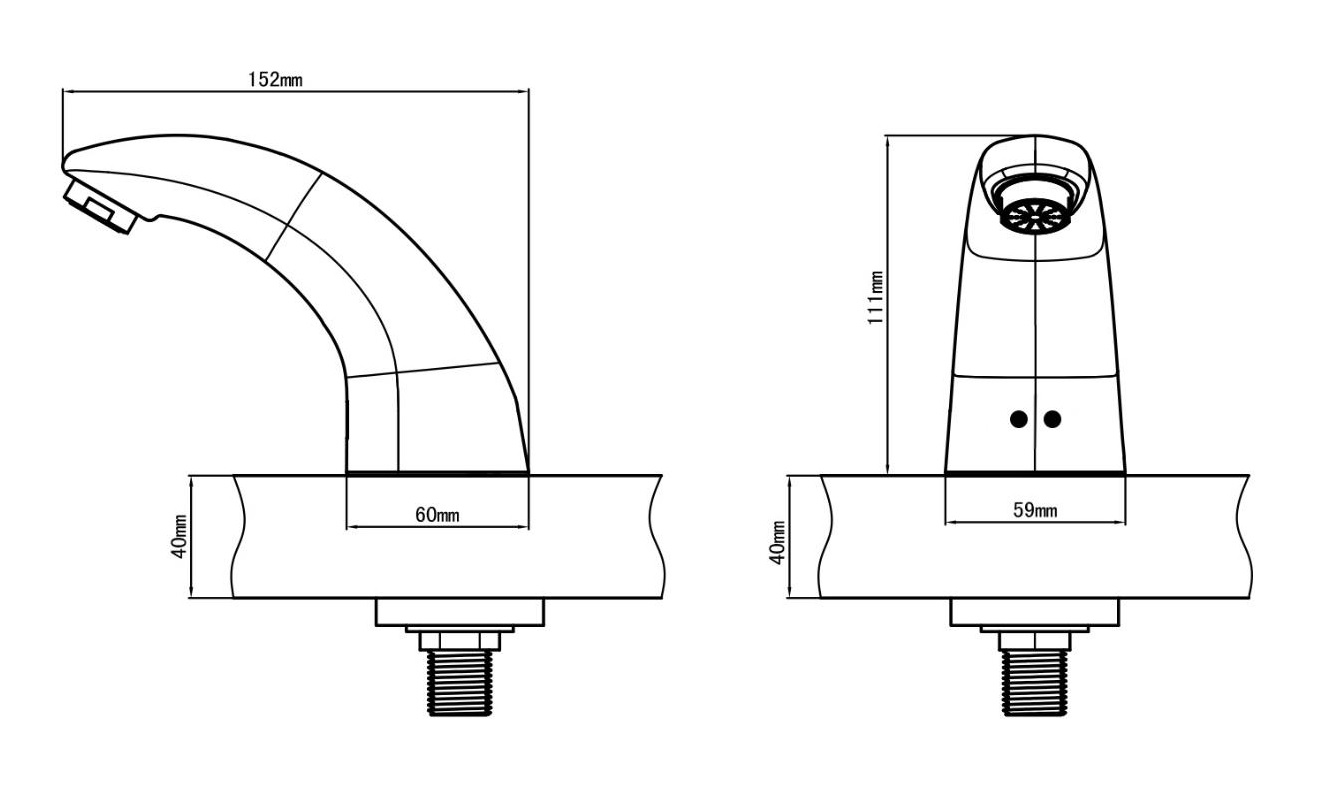

- Spout length - 152 mm
- Spout height - 107 mm
- Height of mixer - 111 mm
- Colour - silver
- Mounting type - wash-basin
- Style - contemporary
- Faucet connection - flexible
- Fitting size - 1/2
- Fitting type - nut
- Net weight - 1,6 kg
- Number of mounting holes - 1

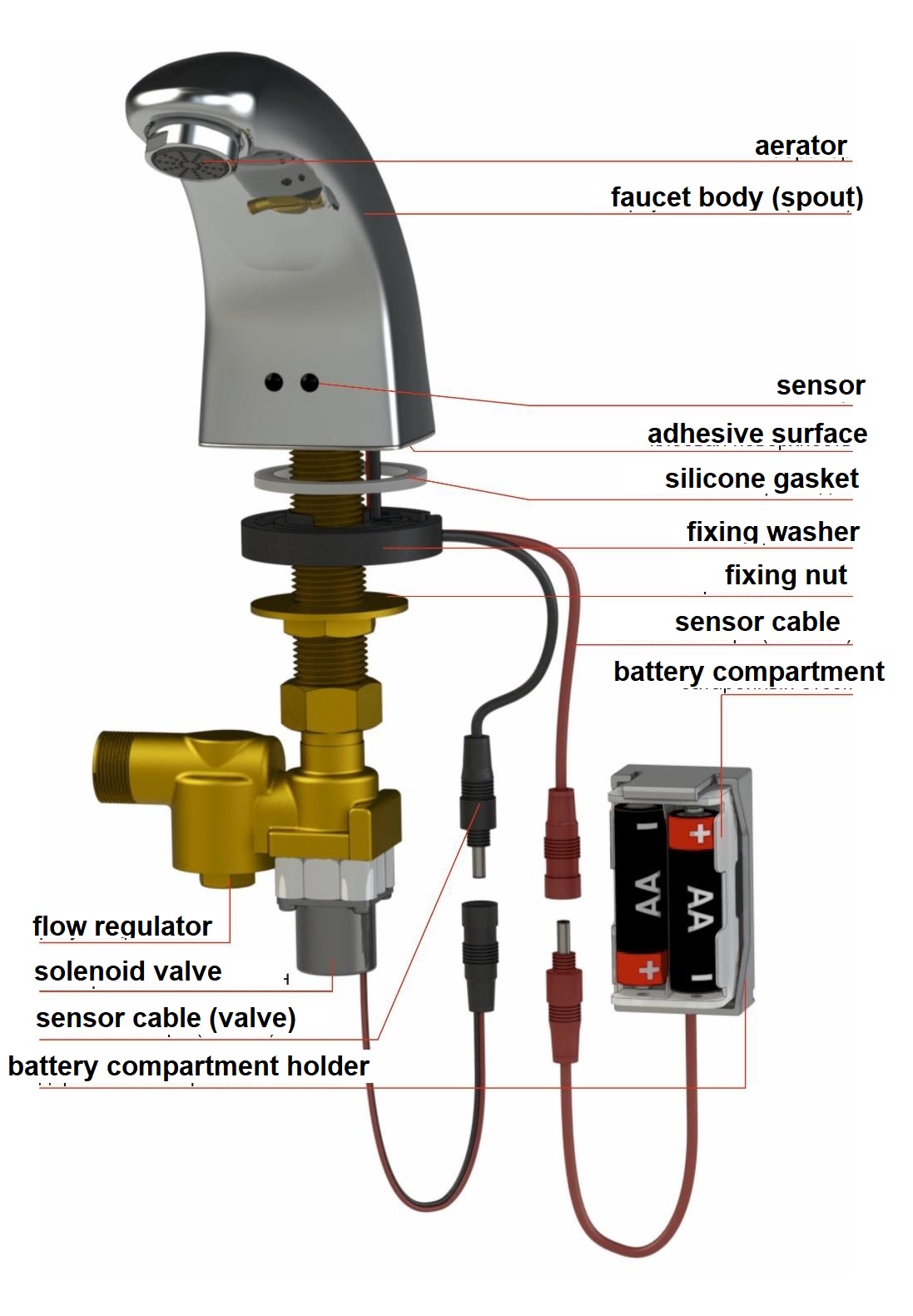

- Spout complete with sensor (faucet) - 1 pc.
- Solenoid valve with EasyCare function and integrated fine filter - 1 pc.
- Battery compartment with battery holder - 1 pc.
- Silicone gasket with fixing washer - 1 pc.
- Fixing nut - 1 pc.
- Fixing kit for battery compartment holder - 1pc.
- USB cable - 1 pc.
- Spacer (1/2") - 1 pc.
- Product data sheet with warranty card - 1 pc.
