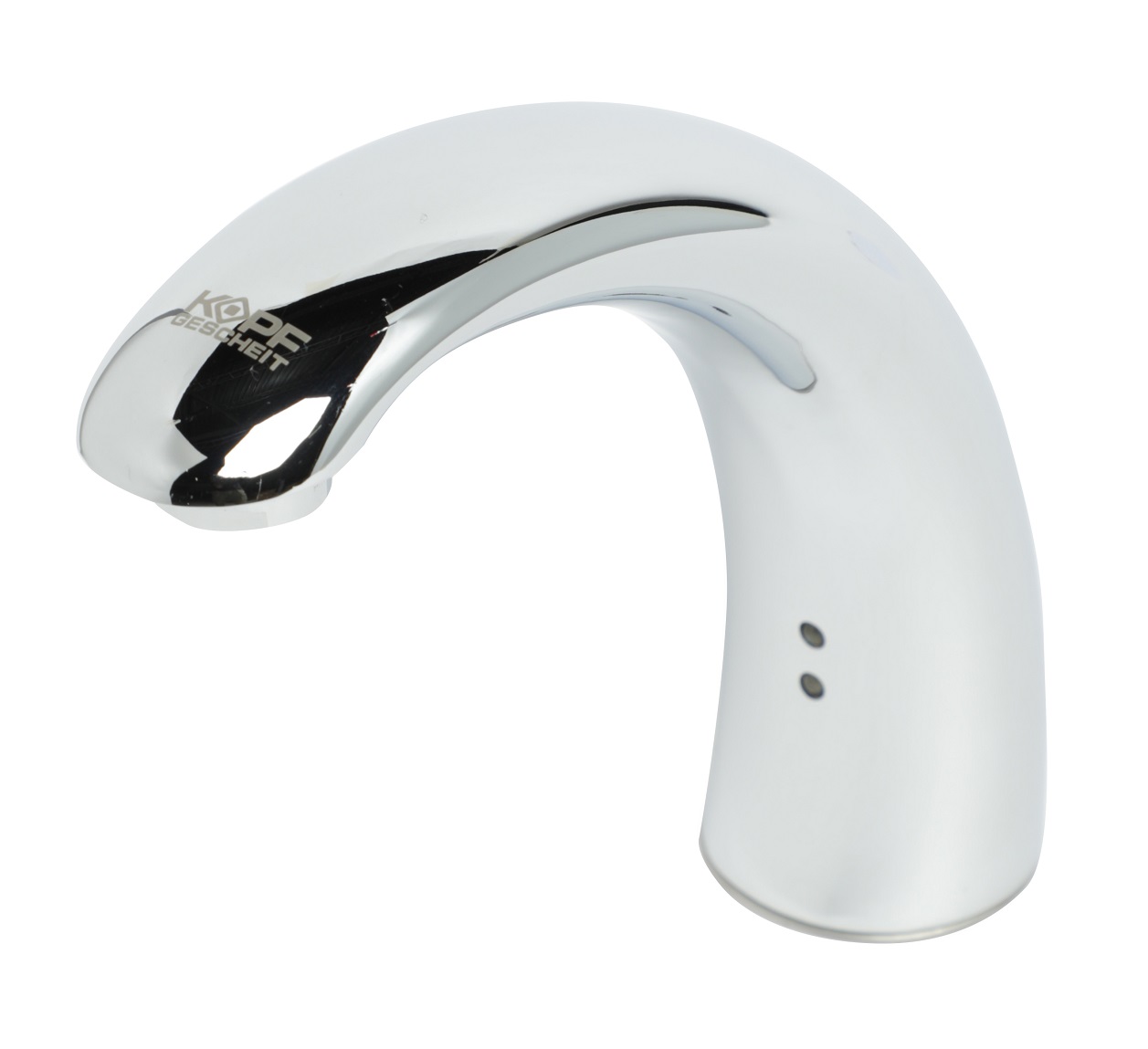

KG5151V-DC Touchless Basin Faucet
The Kopfgescheit KG5151V-DC provides touchless water delivery at the basin. A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms.
- For a single cold or premixed water supply
- Automatic infrared sensor control
- Maximum flow rate of 6 l/min
- Automatic shut-off after 60 seconds of continuous operation
Touchless Basin Faucet
A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms. The Kopfgescheit KG5151V-DC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.
Water supply and installation
This single-inlet model has no temperature lever. Supply premixed water from a separate thermostatic mixing valve where warm water is required. A built-in flow limiter restricts delivery to a maximum of 6 litres per minute. A brass solenoid valve with a 100 µm filter and flow adjustment simplifies maintenance.
Sensor control and power
The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.
Power options include four AA batteries or a compatible USB supply. An automatic cycle replenishes the basin trap after more than a day without use.
Care and use
Use non-abrasive cleaning products suitable for the chrome finish. A separate thermostatic mixing valve must be selected and installed to suit the water supply.
-
Purpose - for wash-basin
-
Type of faucet - touch sensor
-
Surface finish - chrome
-
Body material - brass
-
Spout shape - traditional
-
Swivel spout - no
-
Shut-off valve - solenoid valve
-
Power supply - DC6B (4*AA batteries) (internal) AC 220V or AC/DC 12V (external)
-

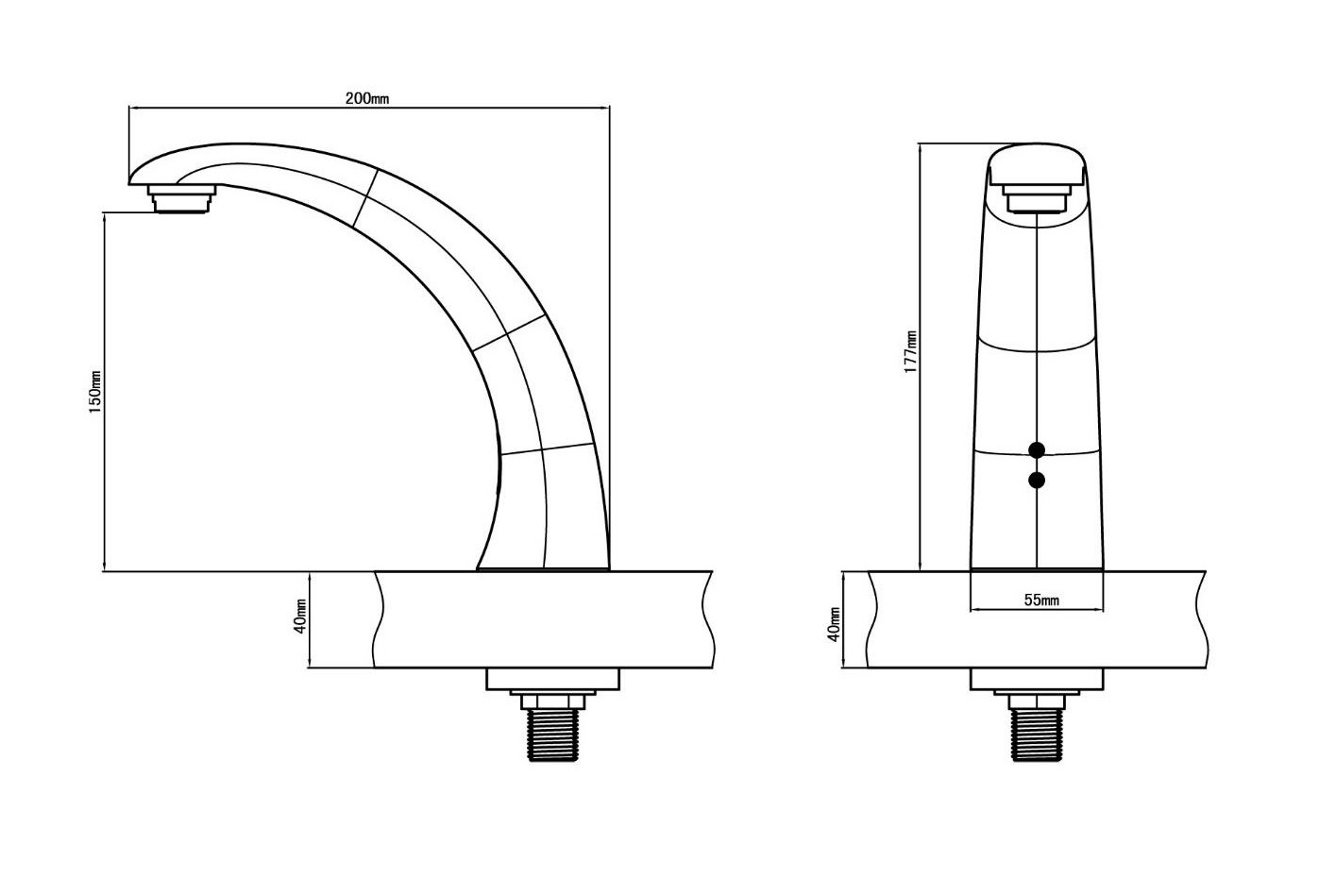

Spout length - 200 mm
-
Spout height - 150 mm
-
Height of faucet - 177 mm
-
Colour - silver
-
Style - contemporary
-
Mounting type - wash-basin
-
Faucet connection - flexible
connection size - 1/2 -
Fitting type - nut
-
Net weight - 1,67 kg
-
Number of mounting holes - 1

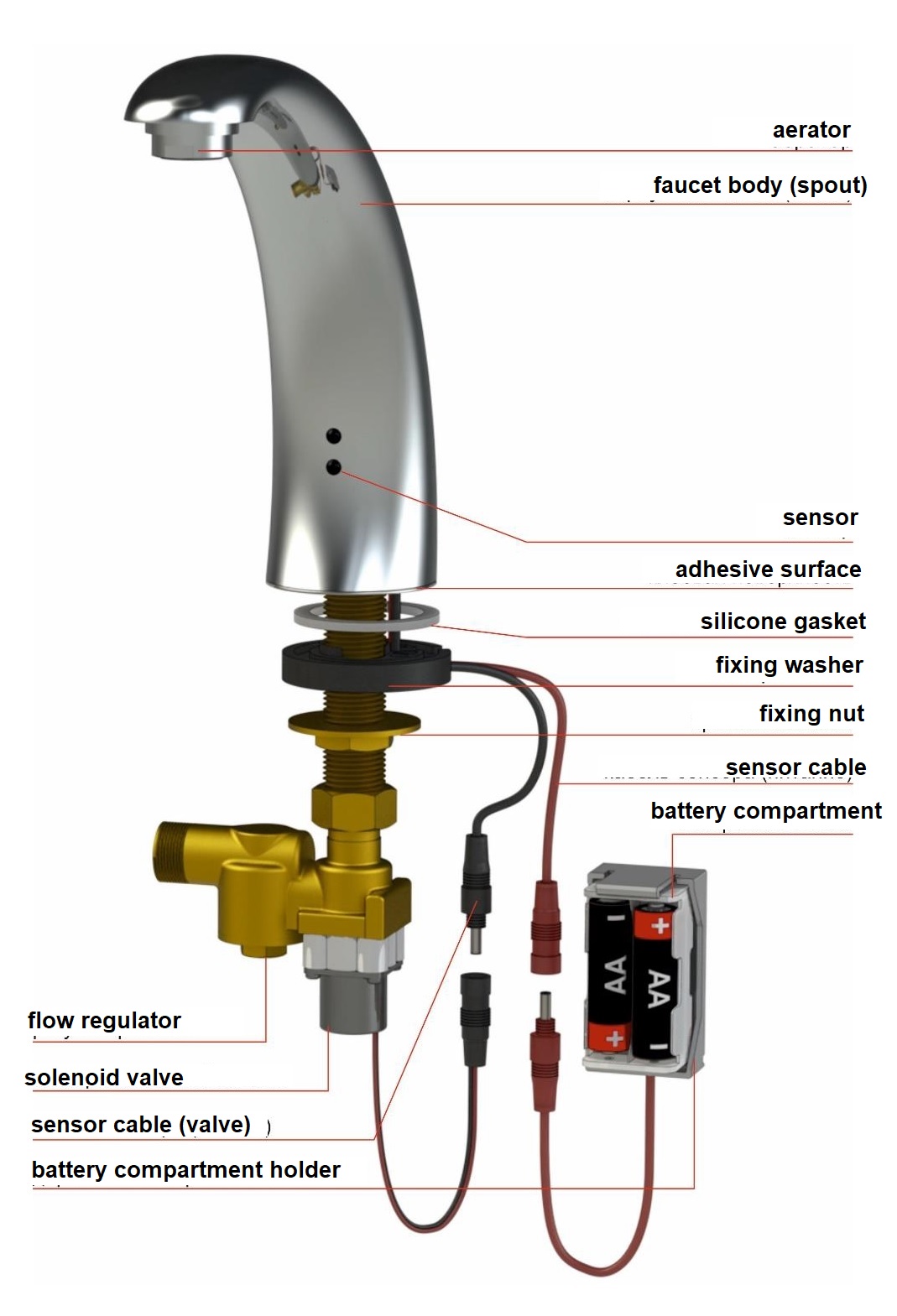

- Spout complete with sensor (faucet) - 1 pc.
- Solenoid valve with EasyCare function and integrated fine filter - 1 pc.
- Battery compartment with battery holder - 1 pc.
- Silicone gasket with washer - 1 pc.
- Fixing nut - 1 pc.
- Fixing kit for battery compartment holder - 1pc.
- USB cable - 1 pc.
- Spacer (1/2") - 1 pc.
- Product data sheet with warranty card - 1 pc.
