Self-powered sensor faucet KG5148SG with hydro generator
Product benefits
- Powered by water flow: the included KG-A448 hydro generator supplies the automatic controls without batteries or an external power supply.
- Touch-free operation with a digital infrared sensor and automatic calibration.
- SUS304 stainless steel body and low-lead brass components.
- KG-A448 generator and KG-A467 solenoid valve made from durable PA66GF20 polyamide reinforced with 20% glass fibre.
- Vandal-resistant construction and an adhesive base for easier installation.
- Integrated 100 µm filter and EasyCare servicing of the filter and valve.
- Built-in flow adjustment and a 6 l/min flow limiter.
- Concealed aerator with a service key included.
- Automatic shut-off after 60 seconds and a flush after 24 hours without use.
- Five-year warranty, including commercial use.
Self-powered touch-free washing
The Kopfgescheit KG5148SG is an automatic basin faucet designed primarily for commercial washrooms. Its included KG-A448 hydro generator converts the energy of flowing water into electricity to power the sensor controls, working together with the KG-A467 solenoid valve. No batteries or external electrical supply are required.
Construction and maintenance
The fixed, non-swivelling spout is made from SUS304 (AISI 304) stainless steel. The faucet combines stainless steel with low-lead brass components. The generator and solenoid valve use PA66GF20 polyamide reinforced with 20% glass fibre for strength and durability.
A built-in flow limiter restricts water flow to a maximum of 6 l/min. The concealed aerator can be removed with the supplied service key. The solenoid valve incorporates a 100 µm filter and EasyCare maintenance, allowing the filter and valve to be serviced without disconnecting the assembly from the supply line. The stainless steel surface is resistant to cleaning agents, including chlorine-based cleaners and disinfectants.
How it works
- A separate thermostatic mixing valve prepares water at the selected temperature and supplies it to the faucet. The faucet has no integrated temperature adjustment.
- When hands enter the infrared sensor detection zone, the solenoid valve opens and water flows from the spout.
- The digital sensor calibrates automatically at initial power-up. Optional adjustment is available using the KG000 RC remote control, which is not included.
Continuous operation is limited to 60 seconds, after which the water shuts off automatically. After more than 24 hours without use, an automatic flush replenishes the basin trap water seal.
Power supply
The KG-A448 hydro generator is included in the package. It supplies energy from the water flow, eliminating routine battery replacement and the need for a mains power connection.
Operating economy
Touch-free control can reduce water use by up to 50–70%, depending on the previous faucet and usage pattern. The generator reduces battery purchases, storage and maintenance. A five-year warranty applies to the complete product, including commercial operation, with service support throughout the product life.
Recommended applications
Schools and universities, healthcare facilities, hotels, restaurants, transport terminals and sports centres. Touch-free operation supports washroom hygiene and accessibility, while the robust construction suits frequent use. Water temperature and scald protection depend on the separately installed thermostatic mixing valve.
Designed and manufactured in Russia.
| Application | Washbasin |
|---|---|
| Control | Touch-free infrared sensor; automatic calibration |
| Body material | SUS304 (AISI 304) stainless steel |
| Colour / finish | Stainless steel |
| Spout | Fixed, non-swivelling |
| Shut-off valve | KG-A467 solenoid valve |
| Power supply | KG-A448 hydro generator, included |
| Maximum flow rate | 6 l/min |
| Filter | Integrated 100 µm fine filter |
| Aerator | Concealed, with service key |

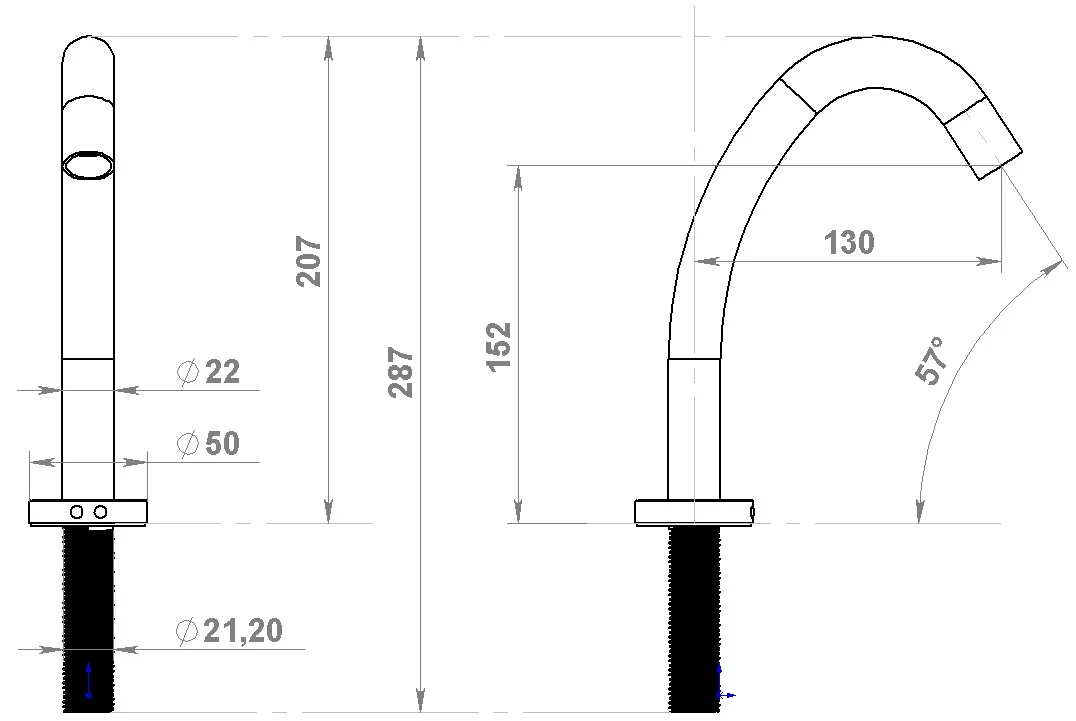

| Spout reach | 130 mm |
| Spout outlet height | 152 mm |
| Overall height | 287 mm |
| Installation | Basin-mounted, single hole |
| Mounting | Fixing nut with adhesive base |
| Water connection | 1/2 inch |
| Supply hose | Flexible PERT bellows hose, 30 cm, included |
| Style / shape | Contemporary / rounded |
| Net weight | 0.8 kg |
| Temperature adjustment | External thermostatic mixing valve required for mixed water; not included |
| Continuous flow limit | 60 seconds |
| Automatic flush | After 24 hours without use |
| Warranty | 5 years, including commercial use |

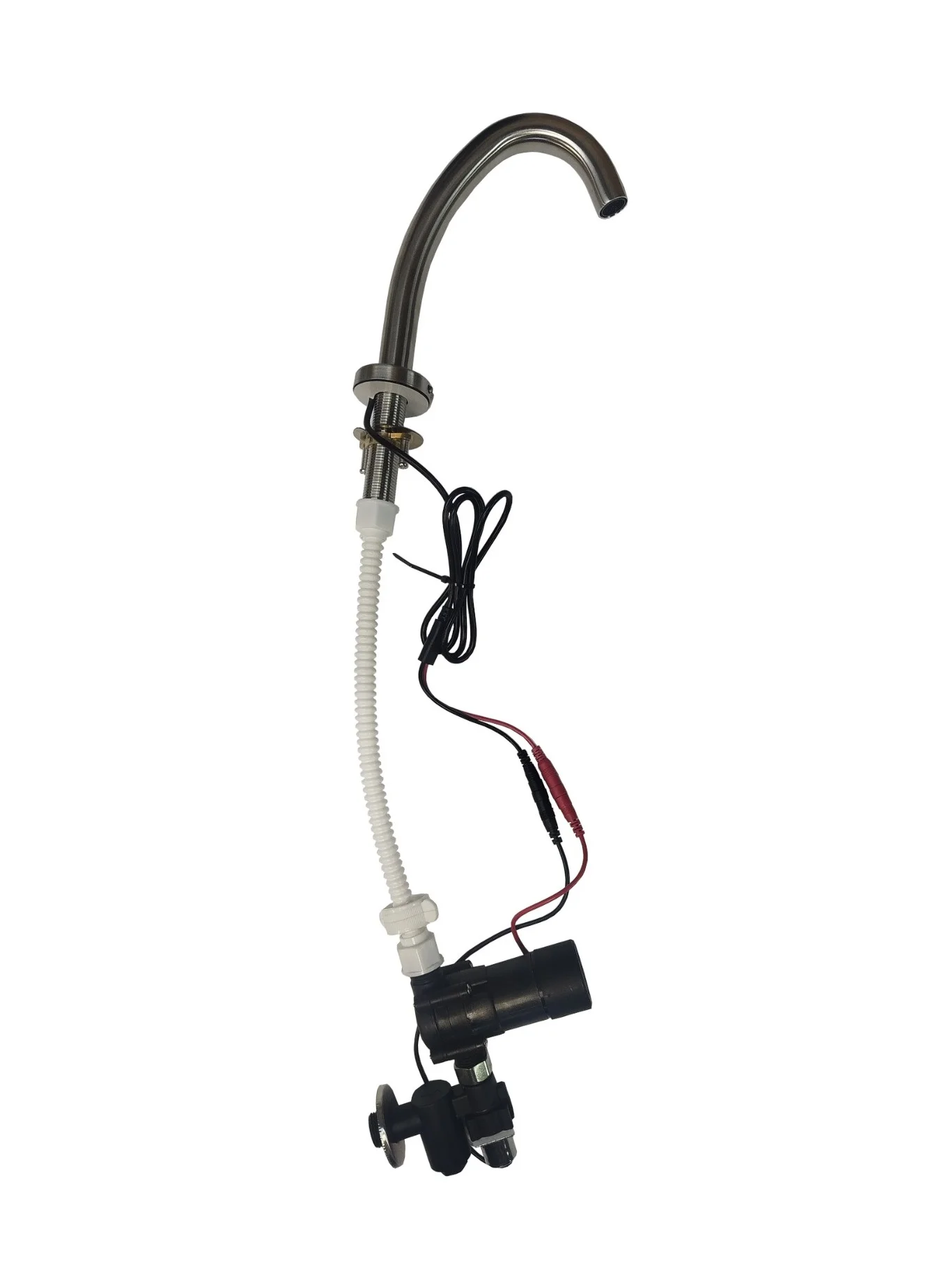

- Faucet spout with integrated sensor — 1 pc.

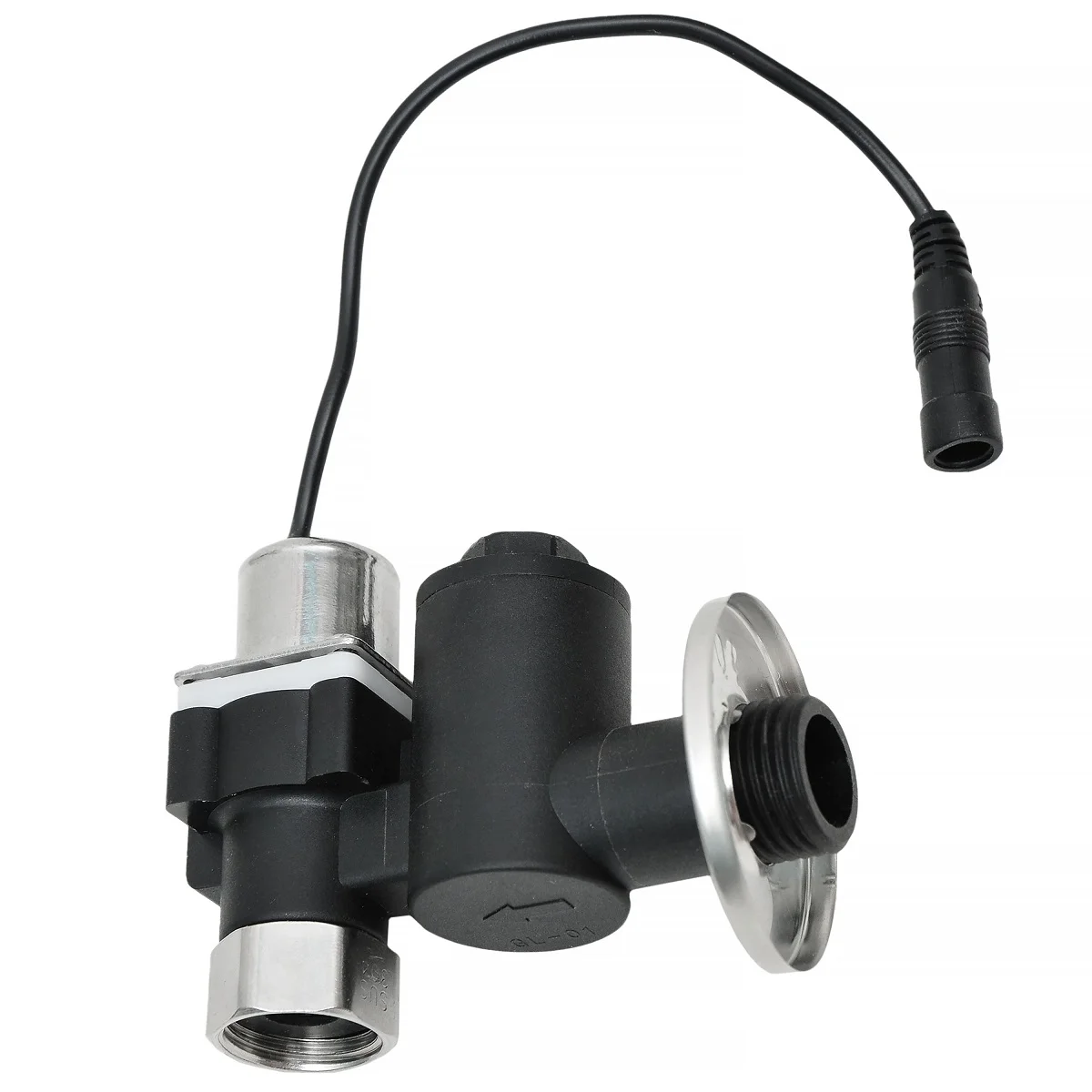

- KG-A467 solenoid valve with EasyCare function and integrated fine filter — 1 pc.

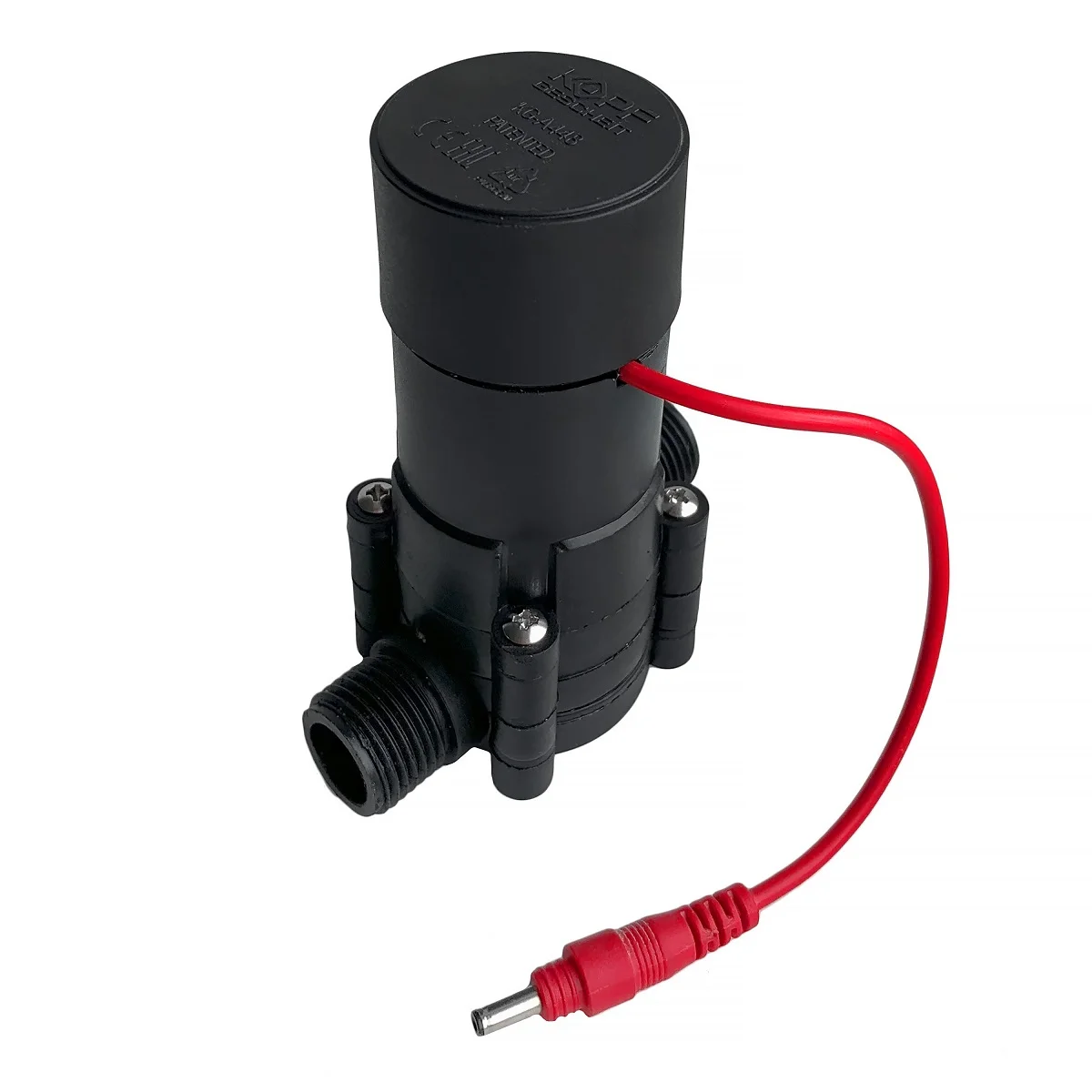

- KG-A448 hydro generator — 1 pc.
- Silicone gasket with mounting washer — 1 set.
- Fixing nut — 1 pc.
- KG-A273 flexible PERT plastic bellows hose, 1/2 inch, 30 cm — 1 pc.
- Removable aerator service key — 1 pc.
- 1/2-inch gasket — 1 pc.
- Product documentation with warranty card — 1 pc.
A thermostatic mixing valve and the optional KG000 RC remote control are not included.
