KG5145CV-DC Tall Sensor Basin Faucet
The Kopfgescheit KG5145CV-DC provides touchless water delivery at the basin. A tall brass faucet with a 235 mm spout height and a sensor positioned in the spout tip.
- For a single cold or premixed water supply
- Automatic infrared sensor control
- Maximum flow rate of 6 l/min
- Automatic shut-off after 60 seconds of continuous operation
Tall Sensor Basin Faucet
A tall brass faucet with a 235 mm spout height and a sensor positioned in the spout tip. The Kopfgescheit KG5145CV-DC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.
Water supply and installation
This single-inlet model has no temperature lever. Supply premixed water from a separate thermostatic mixing valve where warm water is required. A built-in flow limiter restricts delivery to a maximum of 6 litres per minute. The solenoid valve controls water flow automatically.
Sensor control and power
The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.
Power options include four AA batteries or a compatible USB supply. An automatic cycle replenishes the basin trap after more than a day without use.
Care and use
Use non-abrasive cleaning products suitable for the chrome finish. A separate thermostatic mixing valve must be selected and installed to suit the water supply.
- Pipe diameter: DN15 (G1/2")
- Power: DC6B (4*AA batteries, not included)
- AC 220V or AC/DC 12V external (optional)
- UPS function
- Power consumption: 0.5W - 2W
- Working pressure: 0,05 - 0,7 MPa
- Operating temperature: 0.1 - 45°C
- Sensor response area: up to 30 cm (automatic setting)
- Response delay: 0.5 sec
- Protection class: IP65

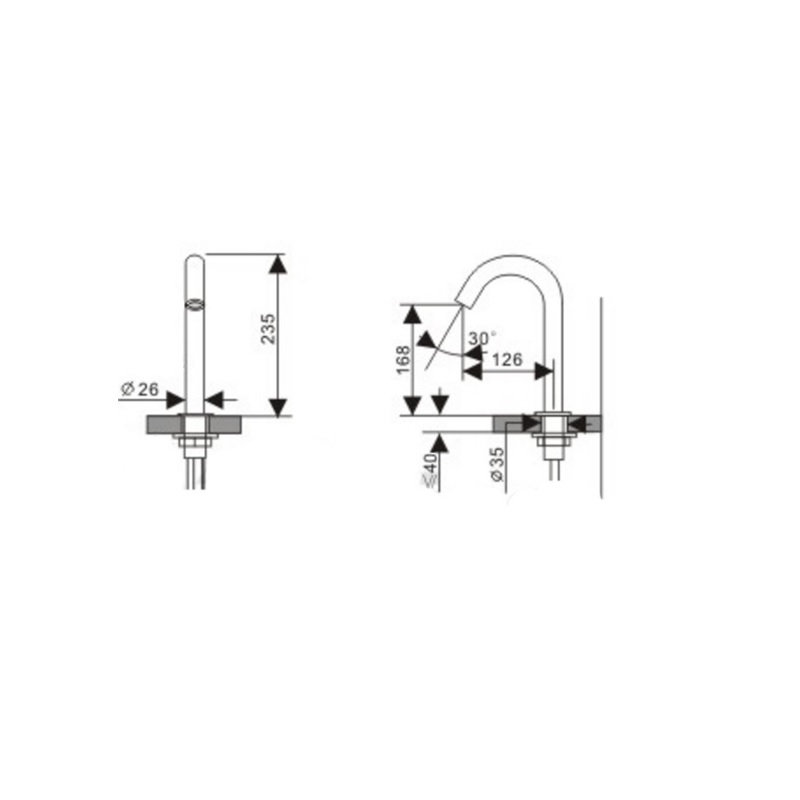

- Spout dimensions (H x W x D): 235 x 26 x 152 mm
- Weight: 0.90 kg

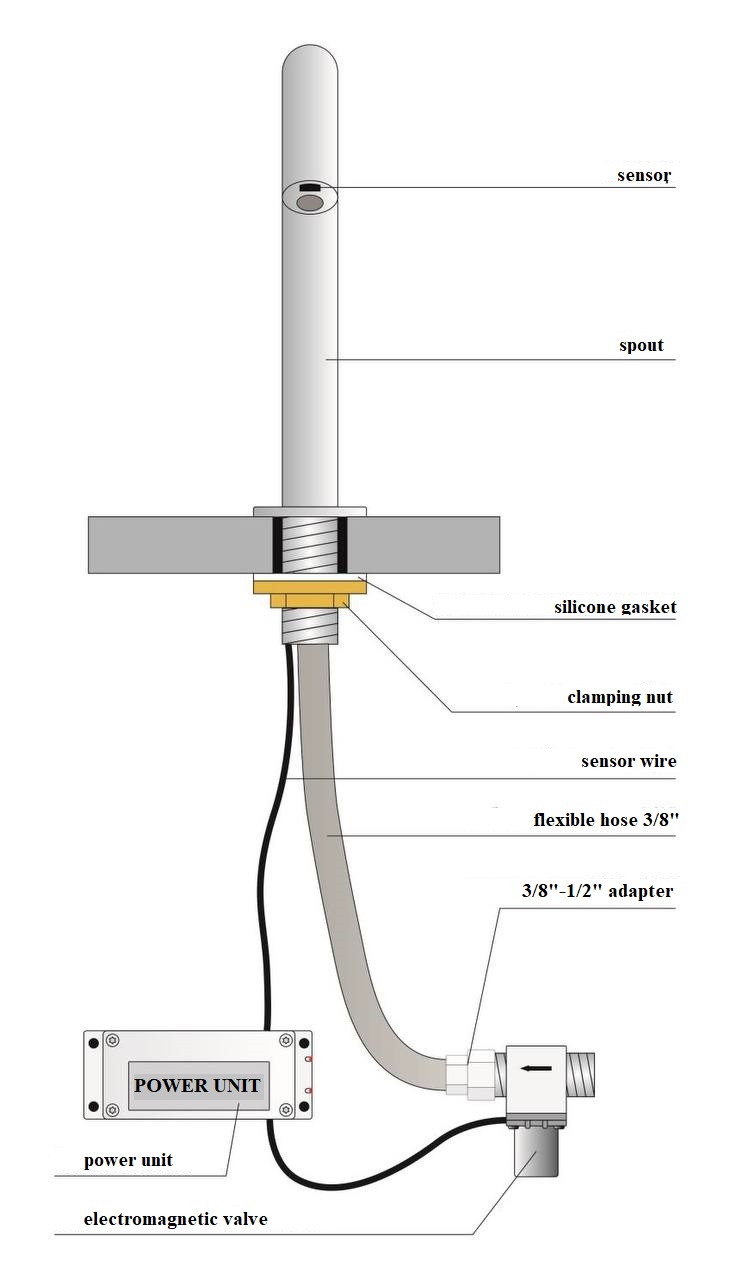

- Spout complete with sensor and flexible connection 3/8" (faucet) - 1 pc.
- Solenoid valve - 1 pc.
- Complete power supply (control unit) - 1 pc.
- Silicone gasket - 1 pc.
- Clamping nut - 1 pc.
- Screw included with dowel for power supply - 4 pcs.
- Adapter 3/8" - 1/2" - 1 pc.
- Star spanner - T8 - 1 pc.
- Product certificate with warranty card - 1 pc.
