KG5149CV-DC Swivel Sensor Faucet with Temperature Control

Swivel Sensor Faucet

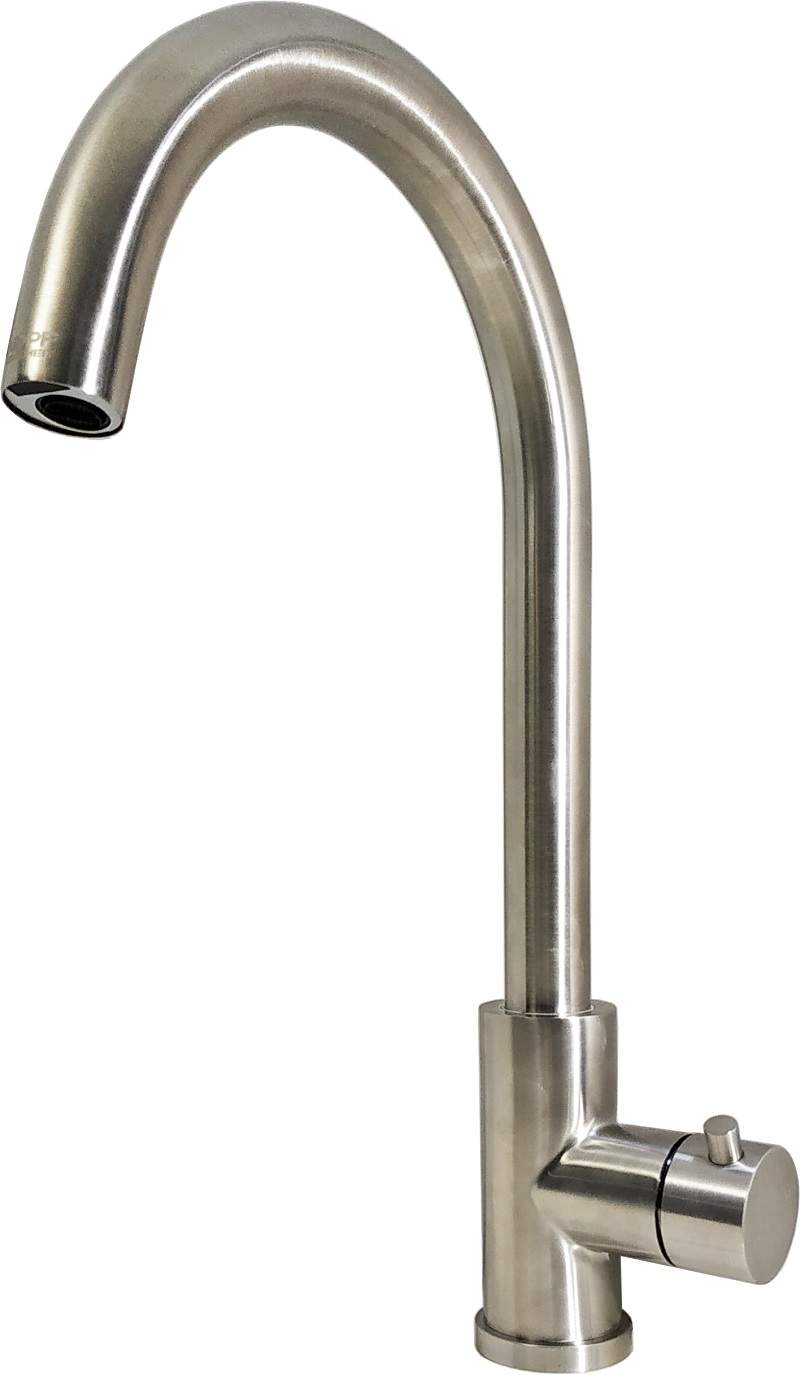

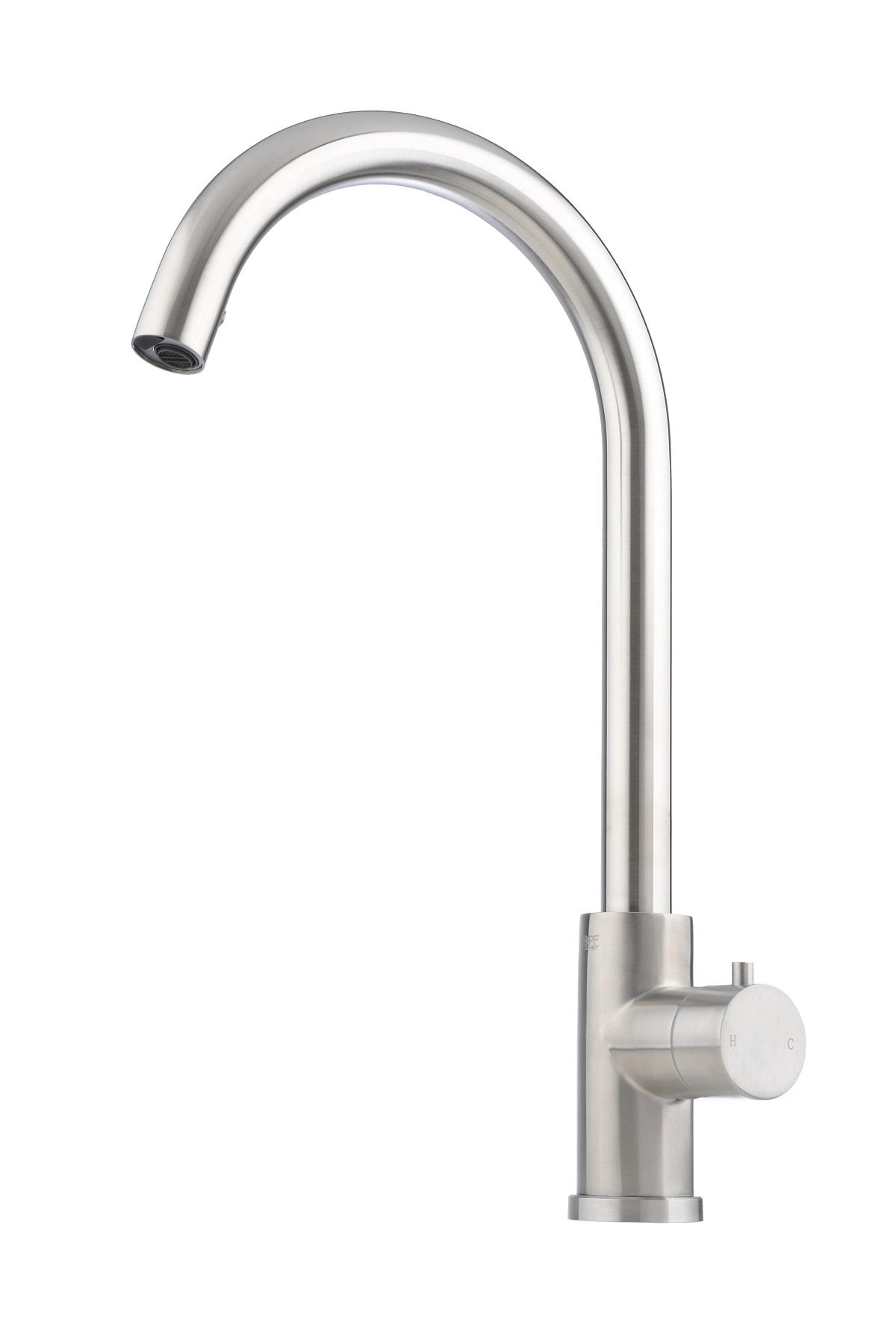

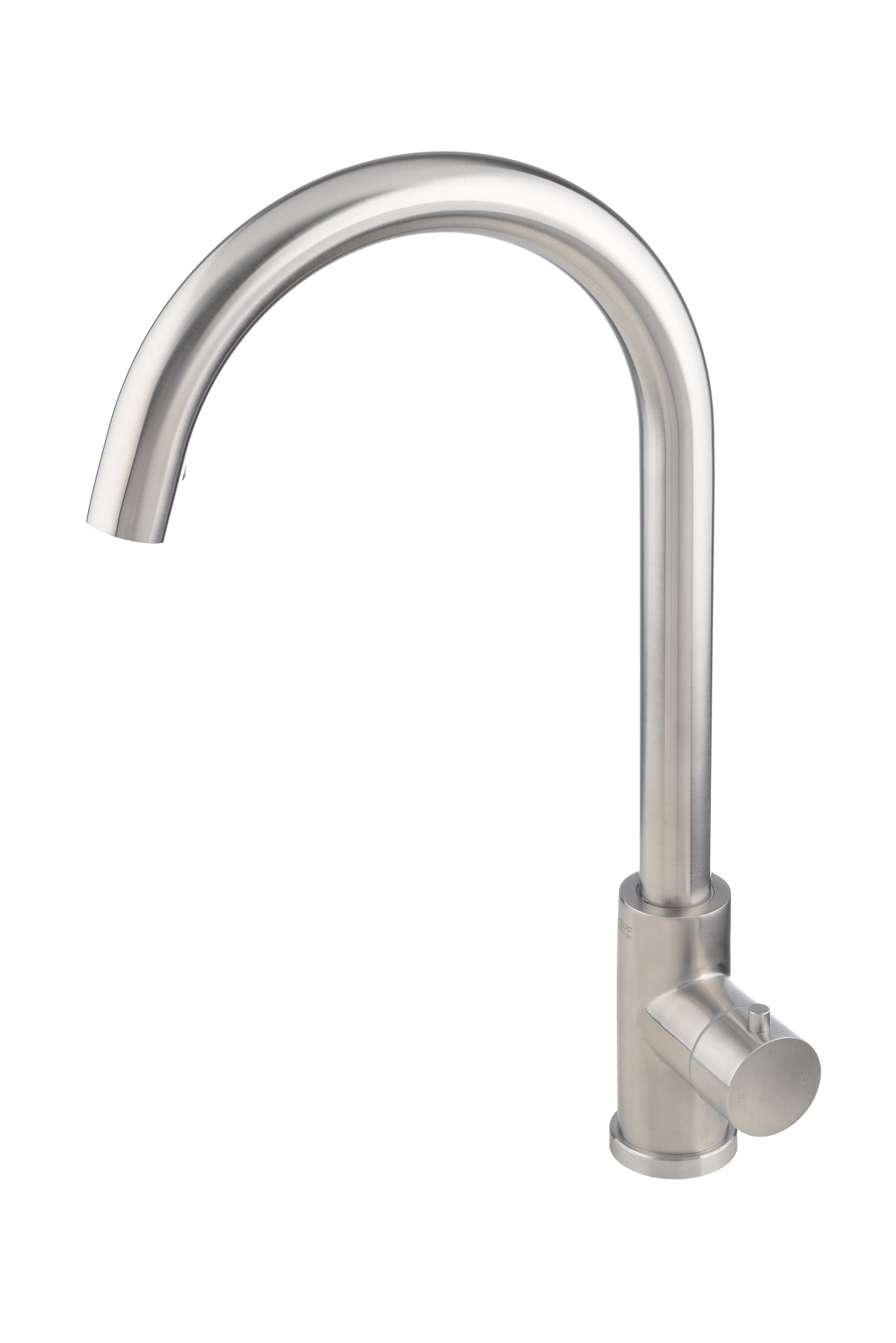

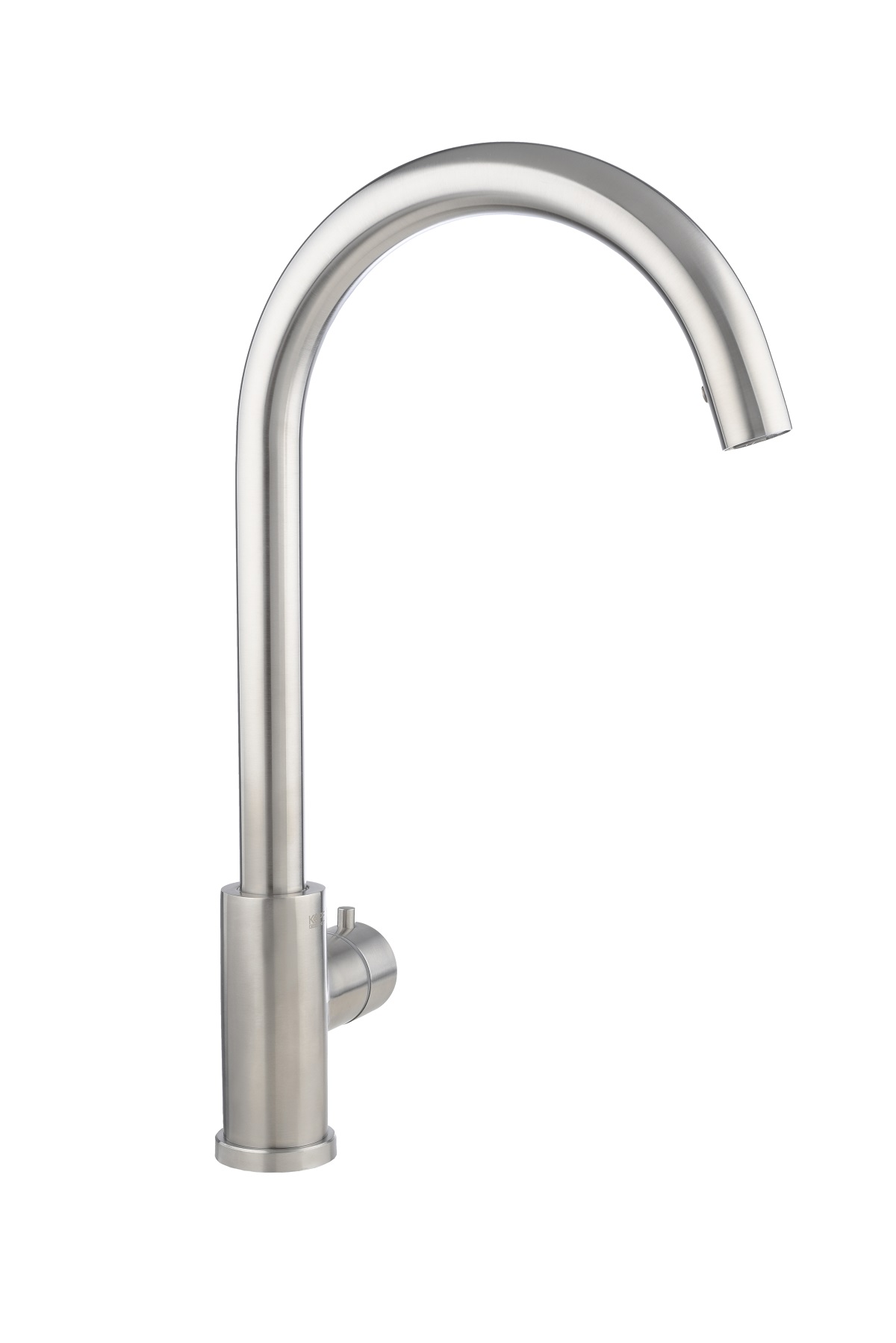

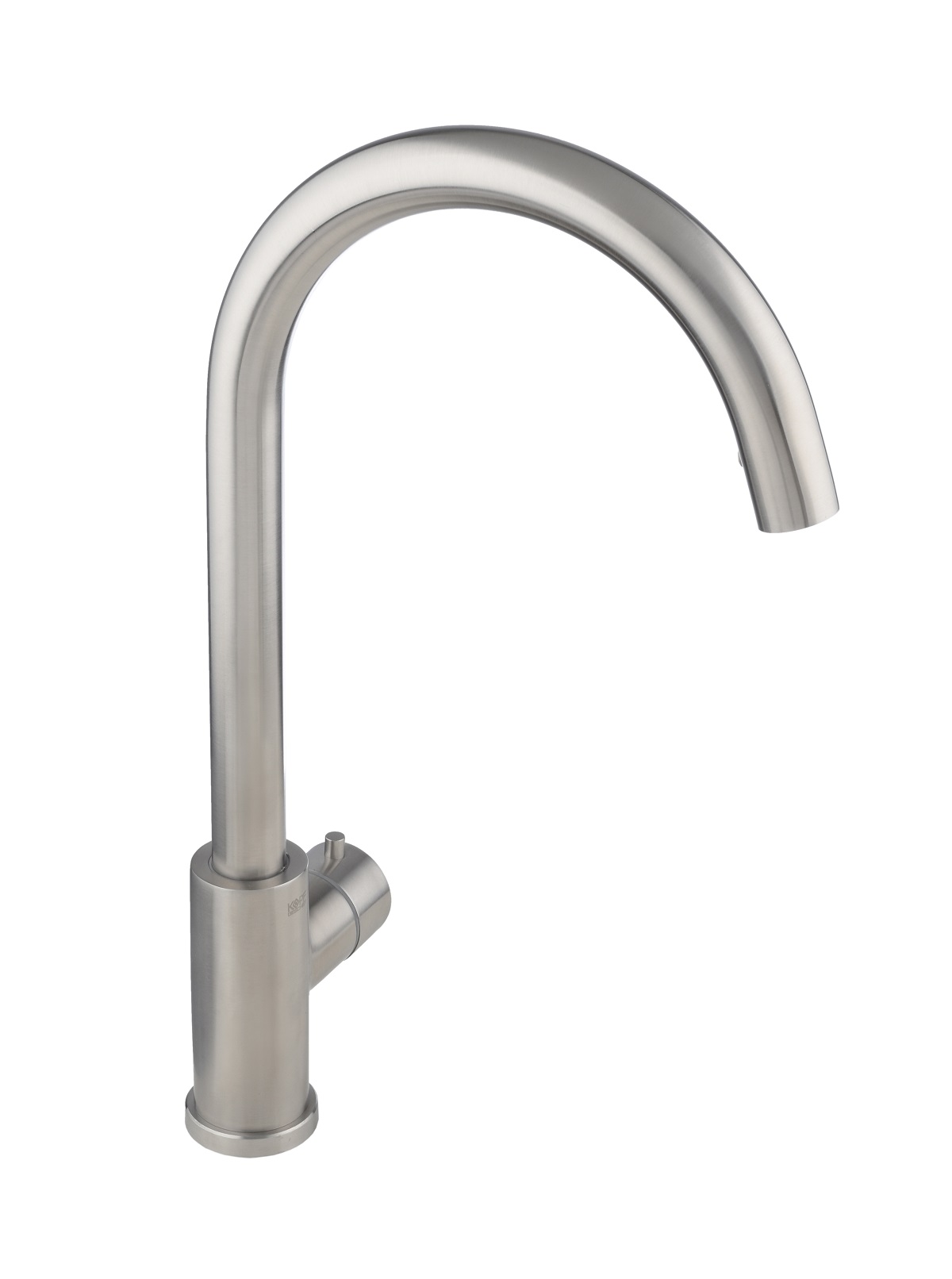

A SUS304 stainless steel faucet with a swivel spout and user-adjustable water temperature. The Kopfgescheit KG5149CV-DC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.

Water supply and installation

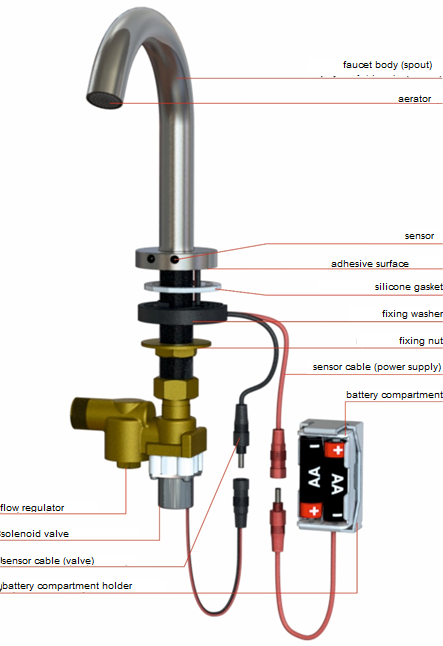

The user adjusts the hot and cold water mixture with a ceramic temperature cartridge. A built-in flow limiter restricts delivery to a maximum of 6 litres per minute. A brass solenoid valve with a 100 µm filter and flow adjustment simplifies maintenance.

Sensor control and power

The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.

Power options include four AA batteries or a compatible USB supply. An automatic cycle replenishes the basin trap after more than a day without use.

Care and use

Clean the stainless steel body and sensor window according to the maintenance instructions. Built-in non-return valves are provided at the hot and cold inlets.
