KG5143VDC Touchless Basin Faucet with Temperature Control
The Kopfgescheit KG5143VDC provides touchless water delivery at the basin. A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms.
- User-adjustable water temperature
- Automatic infrared sensor control
- Maximum flow rate of 6 l/min
- Automatic shut-off after 60 seconds of continuous operation
Touchless Basin Faucet
A fixed-spout automatic faucet with a reinforced Monolith body for domestic and commercial washrooms. The Kopfgescheit KG5143VDC starts the water flow when hands enter the sensor area, reducing the need to touch shared tap surfaces.
Water supply and installation
The user adjusts the hot and cold water mixture with a ceramic temperature cartridge. A built-in flow limiter restricts delivery to a maximum of 6 litres per minute. A brass solenoid valve with a 100 µm filter and flow adjustment simplifies maintenance.
Sensor control and power
The infrared sensor calibrates automatically at initial power-up. Further adjustment is available with the optional KG000 RC remote control. Continuous water flow stops after 60 seconds.
Power options include four AA batteries or a compatible USB supply. An automatic cycle replenishes the basin trap after more than a day without use.
Care and use
Use non-abrasive cleaning products suitable for the chrome finish. Built-in non-return valves are provided at the hot and cold inlets.
-
Purpose - for wash-basin
-
Type of faucet - touch sensor
-
Surface finish - chrome
-
Body material - brass
-
Spout shape - traditional
-
Swivel spout - no
-
Shut-off valve - solenoid valve
-
Power supply - DC6B (4*AA batteries) (internal) AC 220V or AC/DC 12V (external)
-
Aerator - yes
-
Spout length - 152 mm
-
Faucet height - 111 mm
-
Colour - silver
-
Style - contemporary
-
Mounting type - wash-basin
-
Faucet connection - flexible
connection size - 1/2 -
Net weight - 2,3 kg
-
Number of mounting holes - 1

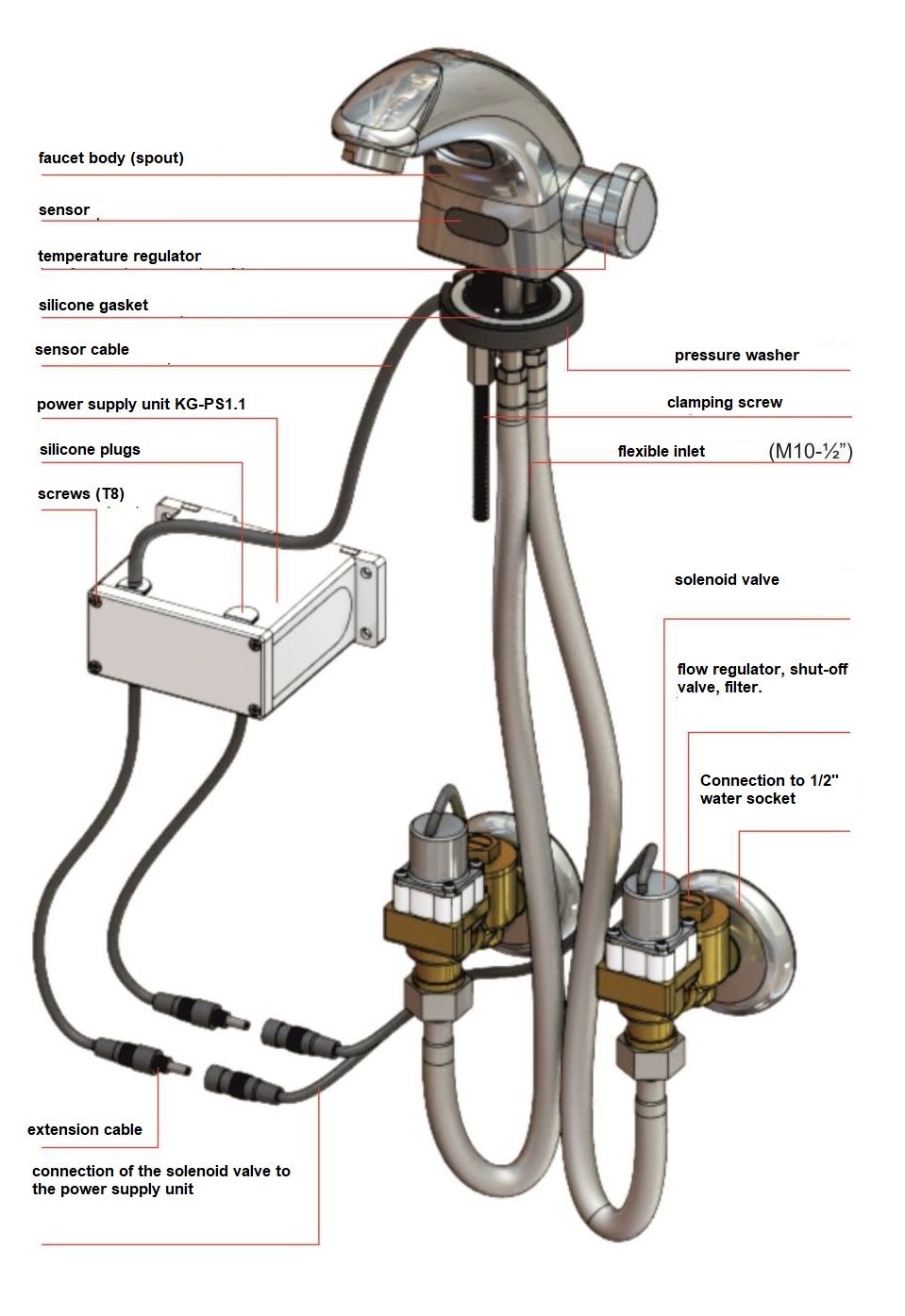

- Power supply unit KG-PS1.1 - 1 pc.
- Silicone gasket for mounting of faucet - 1 pc.
- Plastic washer for fixing the faucet - 1 pc.
- Assembly screw - 2 pcs.
- Screw complete with dowel for fixing the power supply - 4 pcs.
- Flexible hose, l =40 cm - 2 pcs.
- Screwdriver "star" - T8 - 1 pc.
- Product data sheet with warranty card - 1 pc.
